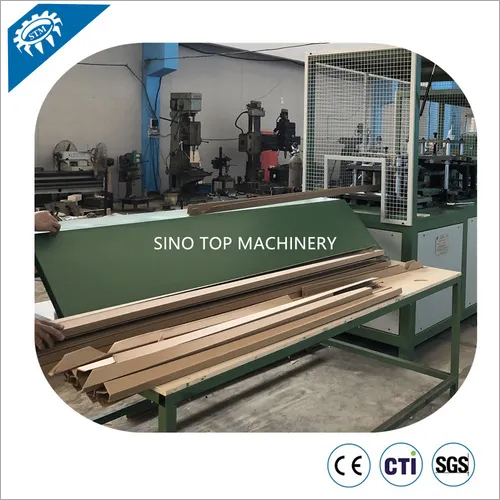

U Profile Edge Protector Machine

About U Profile Edge Protector Machine

Technical parameter:

• 14 layers festoon paper stand
• Glue station
• Kraft liner wrapping part
• 4 /5 wheels forming and pressing part
• Die notching and cutting unit
• Conveyor belt
• Stacking overlap
• Collection table

Working flow of making paper edge boards and corner boards :

• Slitting jumbo roll into small reels per the different edge board sizes
• Put small reels onto the edge board machine paper stands
• Passing all layers to the whole line
• Put down pressing wheels by cylinders
• Wrapping the kraft paper to full wrapping the inside layers
• Start glue pupm, feed glue on paper
• Give slow speed to start edge board machine
• Check and adjust the folding edges, measure the length
• Speed up and start belt and auto stacker
• Collect edge boards and packing manually or by packing machine

Features of Edge Protector machines :

• 4 -5 sets of 3KW SEW motors
• 4 sets of big and solid pressing rollers
• 1 set of 90 degree die
• MISUBISHI frequency converter
• DELTA servo control system
• Schneider relay, contactor, terminals, breaker
• Omron encoder
• Wall size 15*15mm-100*100mm (120-150mm upon request)
• Die notching size 30mm-100mm
• Top cutting speed 40-60m/min
• Top notching speed 25m/min
• Die notching thickness 1-5mm
• Thickness 1.5mm -10mm
• Min cutting length online 50mm
• Buzzer alarm
• Overall size :L25000*D3500*H2500mm
• Power 19-31KW


Edge board machine, edge protector machine, a protection cardboard machine

Corner guard machine, corner board machine, edge guard machine, angle board machine

Specification :

Model	ZHJ120PU
Width of edge	MAX SUM OF THREE WALL 400MM
Production speed	0-40m/min
Cutting accuracy	+1mm
Thickness	2mm-8mm
Max layer	14 layer
Paper demand	Outer Kraft paper or similar paper 160g, inner paper 300g
Voltage	220V/380V/410V-440V
Power	25KW
Cutting method	Serve cutting
Gluing method	Both single sided and double sides
Adjustment of roller	minute adjustment for left and right and up and down by air pressure
Overall Length	L24000 x W1200 x H1500mm
Overall weight	5Ton

Exceptional Efficiency and Durability

Our U Profile Edge Protector Machine combines high-capacity processing with an energy-saving 24.5-watt electric drive, ensuring less power consumption while maintaining reliable operation. The rust-proof and durable design guarantees a long service life, making it ideal for continuous industrial use. With a computerized PLC control system, operators achieve precision and consistency in production, resulting in superior edge protection profiles.


Diverse Applications and Easy Operation

This edge protector machine is suitable for various sectors, providing robust packaging protection for shipping and storage. Its automatic grade functionality and electric power integration ensure user-friendly operation, while its advanced features enable both small and large batch production. Whether operated by experienced technicians or newcomers, the machine's intuitive controls allow quick setup and minimal training requirements.
