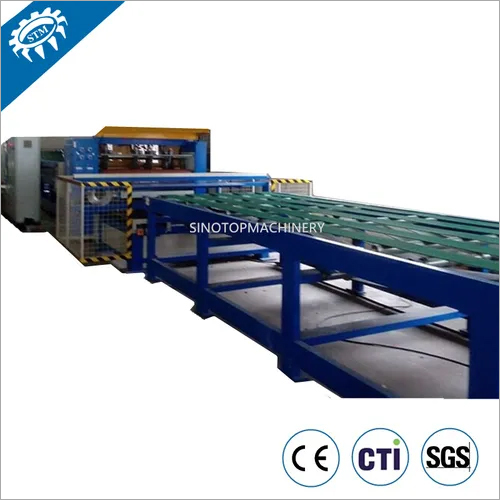

Honeycomb Board Lamination Machine
95000.00 - 150000.00 USD ($)/Unit
Product Details:
- Type Honeycomb Board Lamination Machine
- Material Stainless Steel
- Feature Heavy Duty Machine, Durable, Highly Efficient, Less Power Consumable
- Computerized No
- Automatic Grade Automatic
- Control System PLC Control
- Drive Type Electric
- Click to View more
X
Price And Quantity
- 1 Unit
- 95000.00 - 150000.00 USD ($)/Unit
Product Specifications
- Blue
- Heavy Duty Machine, Durable, Highly Efficient, Less Power Consumable
- 1 Year
- 27-29 Kilograms (kg)
- No
- Honeycomb Board Lamination Machine
- 136 Watt (w)
- 220-240 Volt (v)
- Electric
- Automatic
- PLC Control
- Stainless Steel
Trade Information
- Shanghai
- Telegraphic Transfer (T/T)
- 50 Unit Per Month
- 3 Months
- Western Europe, Asia, Eastern Europe, Middle East, Africa, Central America, South America, North America
- All India
Product Description
Honeycomb Board Lamination Machine
Feature and Advantage
- Two sided hydraulic non axial paper holder with air brake to control tension
- Multi gluing system for surface or core separately, or both
- Precision measure gluing control with meter
- Correct the error function
- Pneumatic swing control of gluing and leaving
- Self control glue pump
- Each unit can be started and stopped separately or by whole line
- Meter for each unit with minute adjustment
- Heating panel to make panel drier
- Straight horizontal cutting rail, servo control with synchronous belt
- Online sharpen system for blade
- PLC and servo control system
- Automatic alarm to remind broken part, which can promise safety work
- Accounting function for each duty
Specification
| Model | ZFX 1300 | ZFX 1600 | ZFX 2000 |
| Max width of panel | 1300mm | 1600 | 2000 |
| Paper holder | Hydraulic or mechanic | Hydraulic or mechanic | Hydraulic or mechanic |
| Core shelf | Automatic lifting | Automatic lifting | Automatic lifting |
| Production speed | 25m/min | 25m/min | 25m/min |
| Max length of cutting | 10m | 10m | 10m |
| Paper demanding | >120g | >120g | >120g |
| Thickness of panel | 5-100mm | 5-100mm | 5-100mm |
| Cutting accuracy | +1mm/min | +1mm/min | +1mm/min |
| Dehumidifying | Yes | Yes | Yes |
| Heating | Heating panel and infrared | Heating panel and infrared | Heating panel and infrared |
| Moisture | 14% | 14% | 14% |
| Gluing | Core or surface | Core or surface | Core or surface |
| Gluing roller | Precision control | Precision control | Precision control |
| Gluing roller control | Pneumatic swing | Pneumatic swing | Pneumatic swing |
| Cutting drive | Servo | Servo | Servo |
| Blade | Online sharpen | Online sharpen | Online sharpen |
| Cutting method | Up to down | Up to down | Up to down |
| Workers | 1-2 person | 1-2 person | 1-2 person |
| Total power | 128 kW | 128 kW | 128 kW |
| Production capacity | 19200 m2 | 19200 m2 | 19200 m2 |
| Overall Size | L 43000xW 2500 x H 2500mm | L 43000x W2500 x H 2500mm | L 43000x W2500x H 2500mm |
| Weight | 27 ton | 28 ton | 29 ton |
