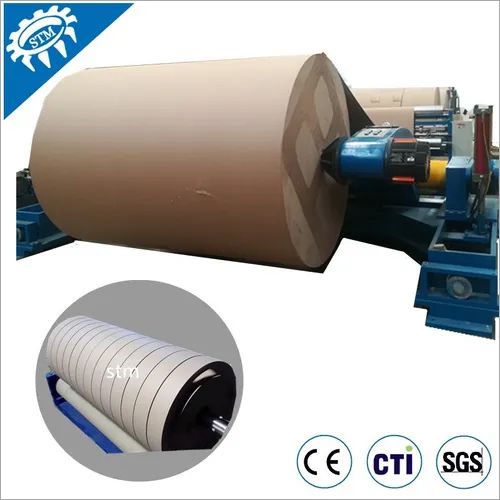

Paper Slitting Machine

Paper Slitting Machine
Paper Slitting Machine
Product Code : ZFQ-1200
Product Description

Paper Slitting Machine

We manufacture and supply an extensive range of Paper Slitting Machine to our esteemed clients. The product is manufactured using optimum quality components that are procured from the certified vendors of the market. It is stringently tested on various predefined standards of the industry to ensure quality at the usersâ„¢ end. This Paper Slitting Machine is used to cut large paper sheets into small pieces.

TECHNICAL PARAMETER

ITEM

SPECIFICATION

Model

ZFQ-1600(1800/2000/2200/2500 for option)

Max with of unwinding paper

500MM---1600MM

Thickness of unwinding paper

80g/m2---500g/m2

Max diameter of unwinding paper

1350MM

Power

(main)7.5KW/380V/50HZ+2.2KW hydraulic paper holder

Max speed

200M/minute

Overall size

L 2700MM x D 1750MM x H 1500MM

Diameter of inner paper tube

76MM

Max diameter of rewinding paper

1300MM

Min width of rewinding paper

40MM

Feature and Advantage

  • Noise free operation
  • Sturdy construction
  • Rust resistance
  • Two thick blades, smooth edge of rewinding paper
  • Tight and firm rewinding roller
  • All controlled by PLC
  • Hydraulic paper holder
  • Air shaft
  • Pneumatic drive control with even tension, 6 point brake from TAIWAN with safety protection cover,Pneumatic components from YADEKE, bears from HARBIN
